(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)

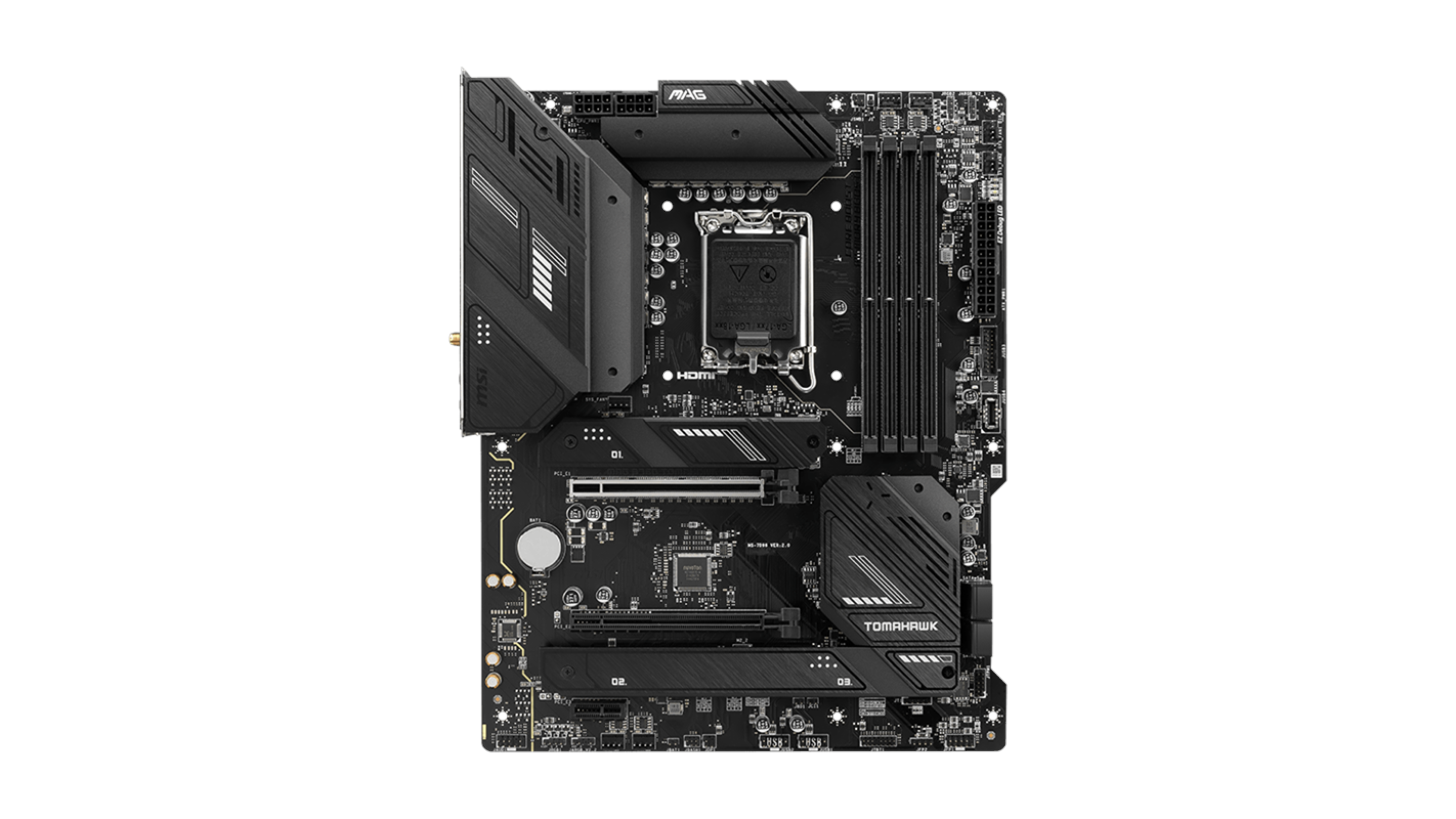

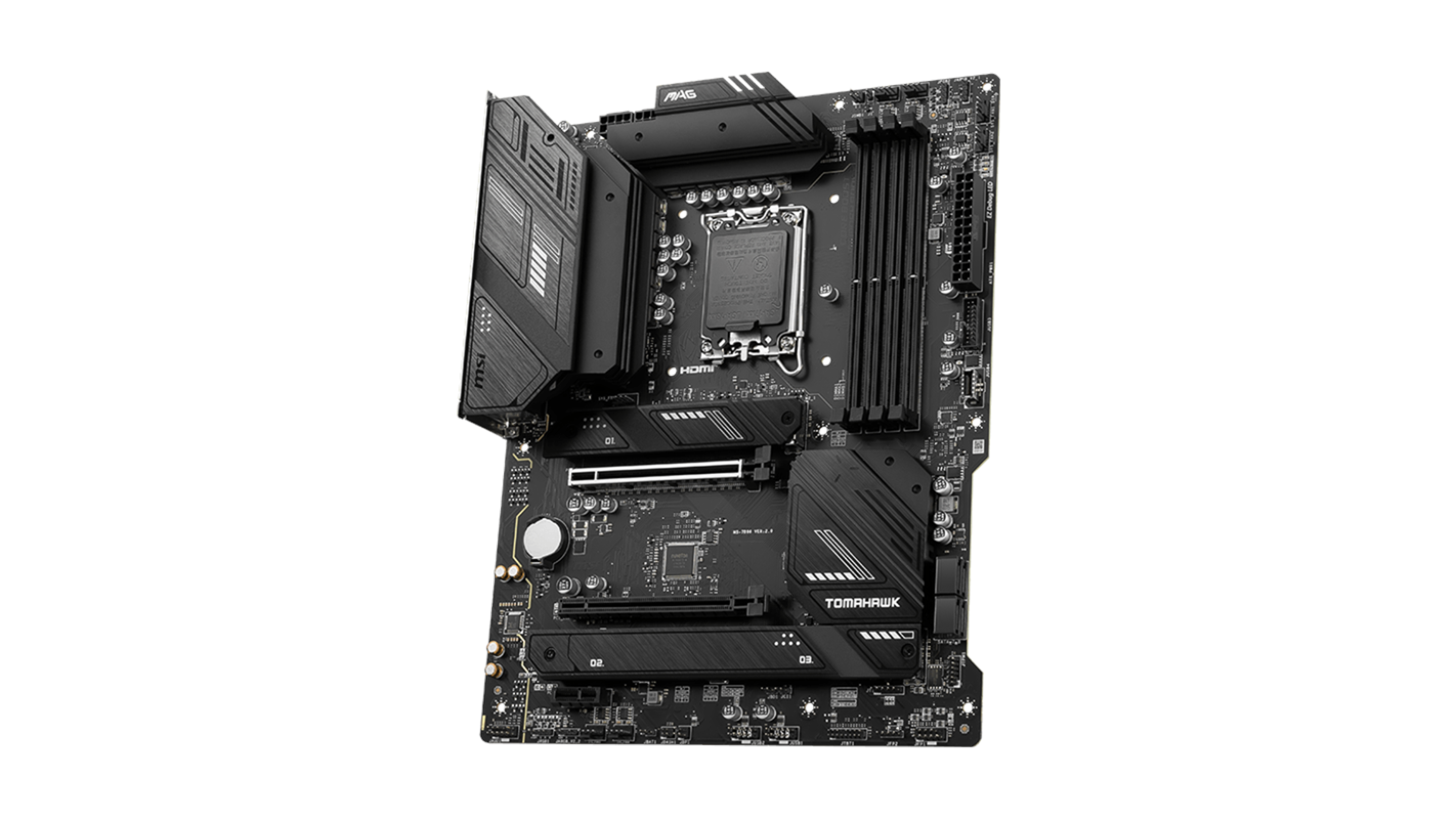

Bundkort - ATX

Intel B760

LGA1700

1

MSI

4 x USB 2.0 - intern stik 2 x USB 3.2 Gen 1 - intern stik 1 x USB-C 3.2 Gen 2 - intern stik 1 x audio - intern stik 1 x Thunderbolt - intern stik 1 x SPI - intern stik

SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 2 x M.2 SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2

1 x CPU 4 x DIMM 288-pins 1 x PCIe 5.0 x16 1 x PCIe 3.0 x16 (x4-modus) 1 x PCIe 4.0 x1 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning) 2 x M.2 socket (2242/2260/2280 M.2 Key M åbning) 1 x M.2 socket (Key E)

24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser

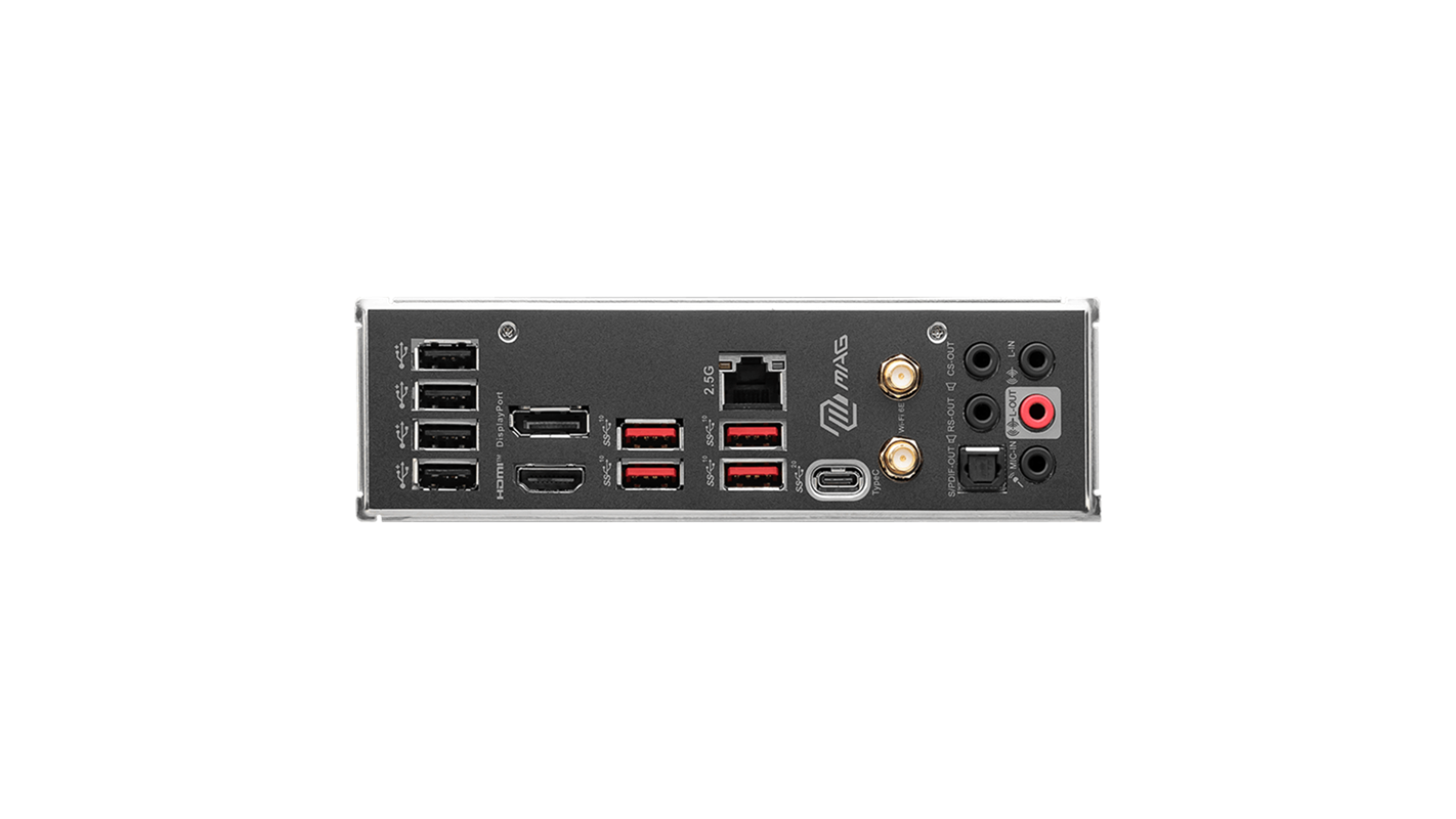

1 x HDMI 1 x DisplayPort 4 x USB 2.0 1 x USB-C 3.2 Gen2x2 4 x USB 3.2 Gen 2 1 x LAN (2.5Gigabit Ethernet) 2 x antenne 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 1 x audio linje-ud (centrum/subwoofer) - mini-jack 1 x audio linje-ud (bagtil) - mini-jack 1 x audio linje-ind - mini-jack 1 x SPDIF-ud

Ikke-ECC

Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)

DDR5

Ikke bufferet

206158430208

7000 MHz (O.C.), 6800 MHz (O.C.), 6600 MHz (O.C.), 6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz, 5400 MHz, 5200 MHz, 5000 MHz, 4800 MHz

VRM kølelegemedesign, MSI Memory Boost, lastlinjekalibrering (LLC), Digital PWM, MSI Audio Boost, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, overspændingsbeskyttelse, 2oz Copper PCB, M.2 Shield FROZR, Water Pump Header, 12+1+1 Phase Power Design, MSI Core Boost, Extended Heatsink Design, DIY Friendly Design, Surface Mount Technology (SMT)

MSI ClickBIOS 5, M-Flash

CPU kernetemperatur, chassis temperatur, CPU kerne-spænding, systemspænding

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

Realtek RTL8125BG

HD Audio (8-kanaler)

Realtek ALC897

High Definition Audio
