(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)

Bundkort - ATX

Intel Z790

LGA1700

1

MSI

4 x USB 2.0 - intern stik 4 x USB 3.2 Gen 1 - intern stik 1 x USB-C 3.2 Gen 2 - intern stik 1 x audio - intern stik 1 x Thunderbolt - intern stik 1 x SPI - intern stik

SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

1 x CPU 4 x DIMM 288-pins 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4-modus) 1 x PCIe 3.0 x1 1 x PCIe 3.0 x16 (x1 modus) 3 x M.2 socket (2242/2260/2280 M.2 Key M åbning) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning) 1 x M.2 socket (Key E)

24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser

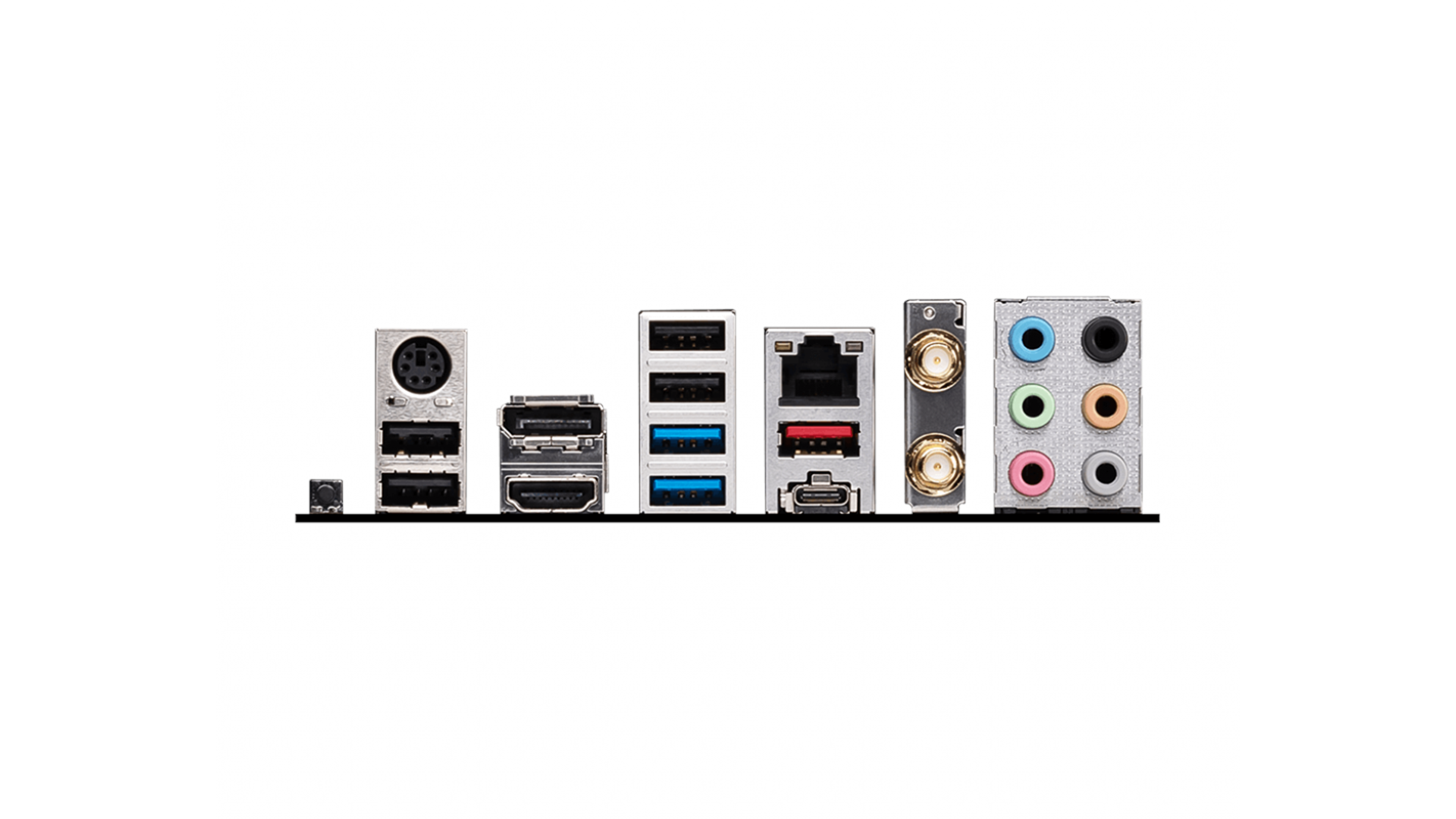

1 x HDMI 1 x DisplayPort 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x USB-C 3.2 Gen2x2 1 x USB 3.2 Gen 2 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 1 x audio linje-ud (centrum/subwoofer) - mini-jack 1 x audio linje-ud (bagtil) - mini-jack 1 x audio linje-ind - mini-jack 1 x audio linje-ud (sidesurround) - mini-jack 2 x antenne 1 x LAN (2.5Gigabit Ethernet) 1 x PS/2-tastatur/mus

Ikke-ECC

5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz

Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 3.0

DDR5

Ikke bufferet

137438953472

MSI ClickBIOS 5

Digital PWM, MSI Audio Boost, Debug LED, 6 Layer PCB, MSI Steel Armor, 2oz Copper PCB, M.2 Shield FROZR, Water Pump Header, MSI Core Boost, Extended Heatsink Design, 14+1+1 Phase Power Design, Surface Mount Technology (SMT), MSI Memory Boost

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3

HD Audio (8-kanaler)

Realtek ALC897

High Definition Audio
