Ryzen (understøtter 3. Generation Ryzen and New Generation Ryzen med Radeon Graphics)

AMD B550

Socket AM4

1

Bundkort - micro ATX

MSI

4 x USB 2.0 - intern stik 2 x USB 3.2 Gen 1 - intern stik 1 x USB-C Gen 1 - intern stik 1 x audio - intern stik 1 x seriel - intern stik

SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 PCIe 3.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1

1 x CPU 4 x DIMM 288-pins 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1

4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

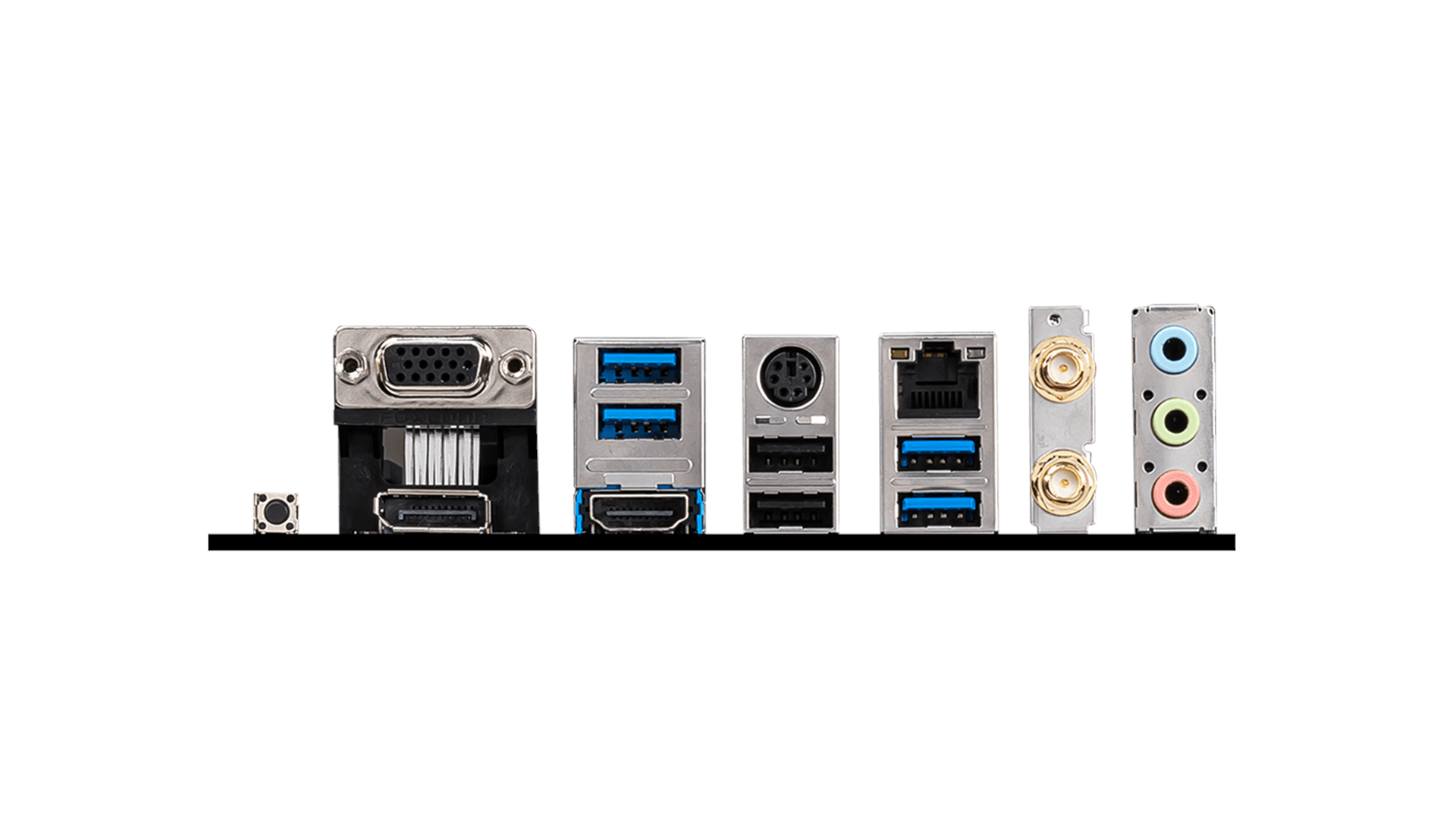

1 x LAN (Gigabit Ethernet) 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 4 x USB 3.2 Gen 1 1 x PS/2-tastatur/mus 2 x USB 2.0 1 x HDMI 1 x DisplayPort 1 x VGA

Ikke-ECC, ECC (drift i ikke-ECC tilstand)

2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 3066 MHz

Dobbelt kanal hukommelses arkitektur, understøttede ECC-moduler fungerer i ikke-ECC-tilstand, A-XMP support

DDR4

Ikke bufferet

137438953472

MSI Audio Boost, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, MSI PCIe Steel Slot, MSI Mystic Light Sync

Realtek RTL8111HN / Intel Dual Band Wireless-AC 3168

Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac

HD Audio (8-kanaler)

Realtek ALC892

High Definition Audio

16 GB
