(understøtter Intel Core Ultra-processorer (Serie 2))

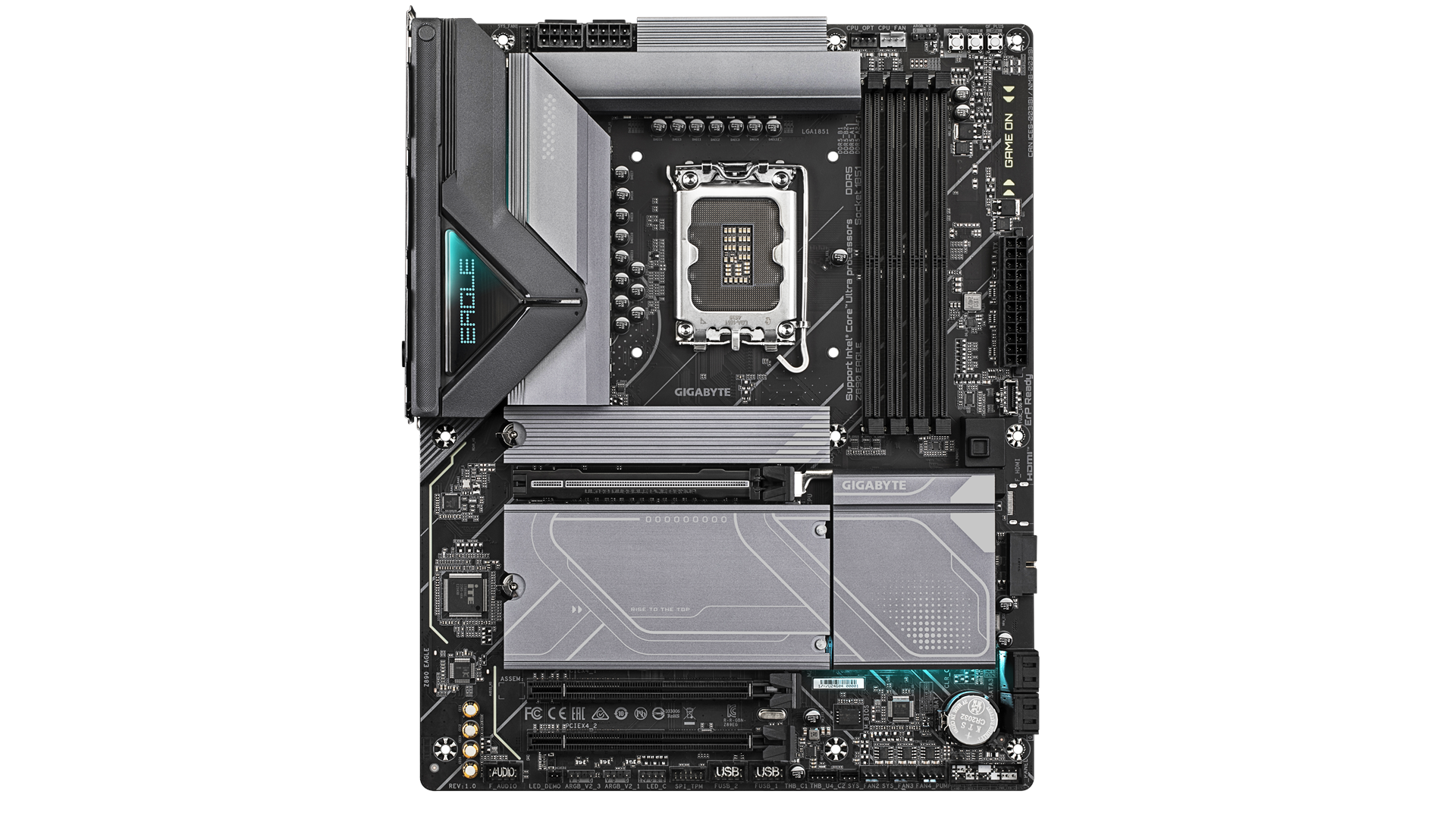

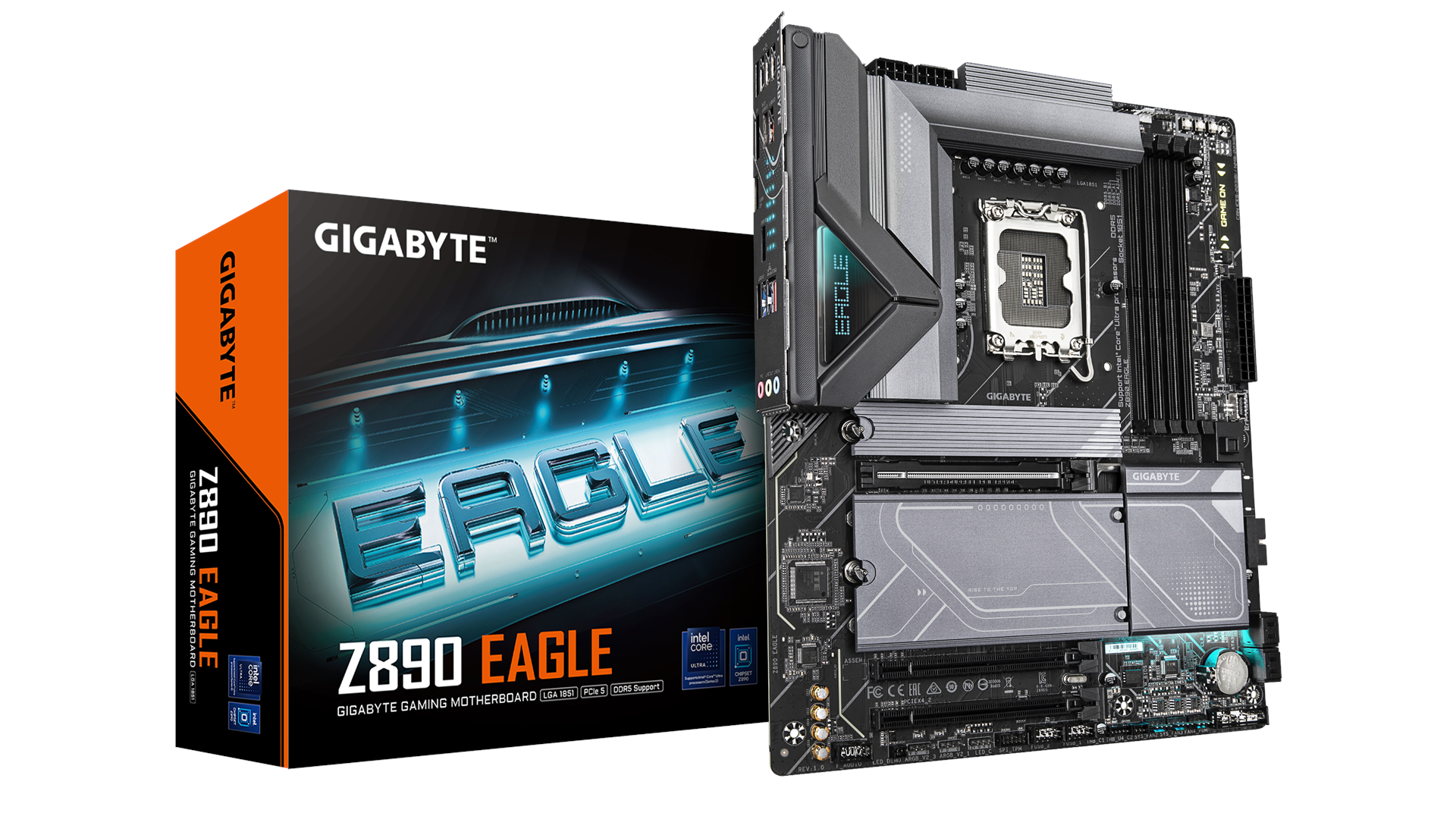

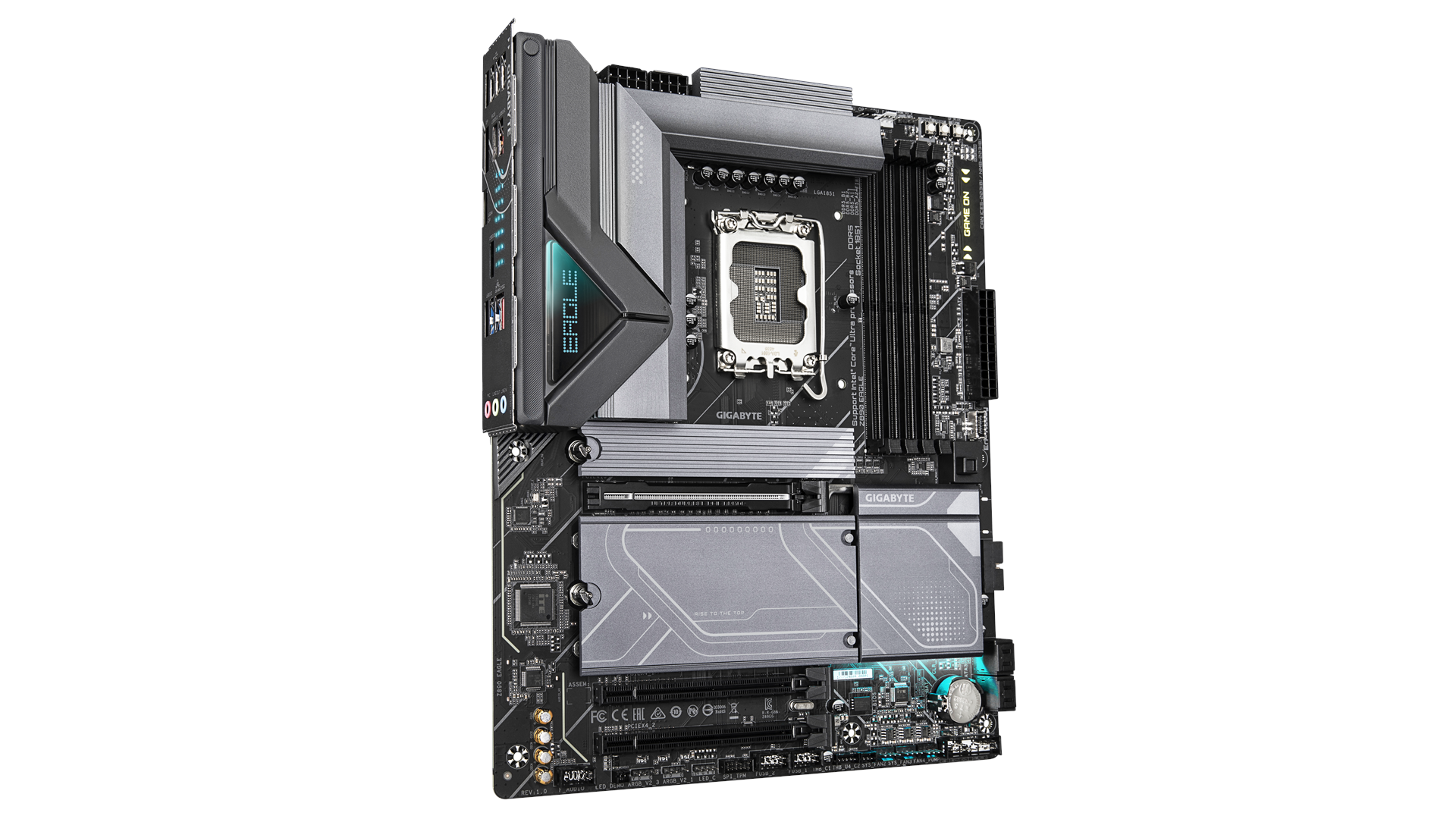

Bundkort - ATX

Intel Z890

LGA1851

1

GIGABYTE

1 x USB-C 3.2 Gen 2 - intern stik 2 x USB 3.2 Gen 1 - intern stik 4 x USB 2.0 - intern stik 1 x audio - intern stik 1 x SPI - intern stik

SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

1 x CPU 4 x DIMM 288-pins 1 x PCIe 5.0 x16 2 x PCIe 4.0 x16 (x4-modus) 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M åbning) 3 x M.2 socket (2280/22.110 M.2 Key M-åbning)

24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser

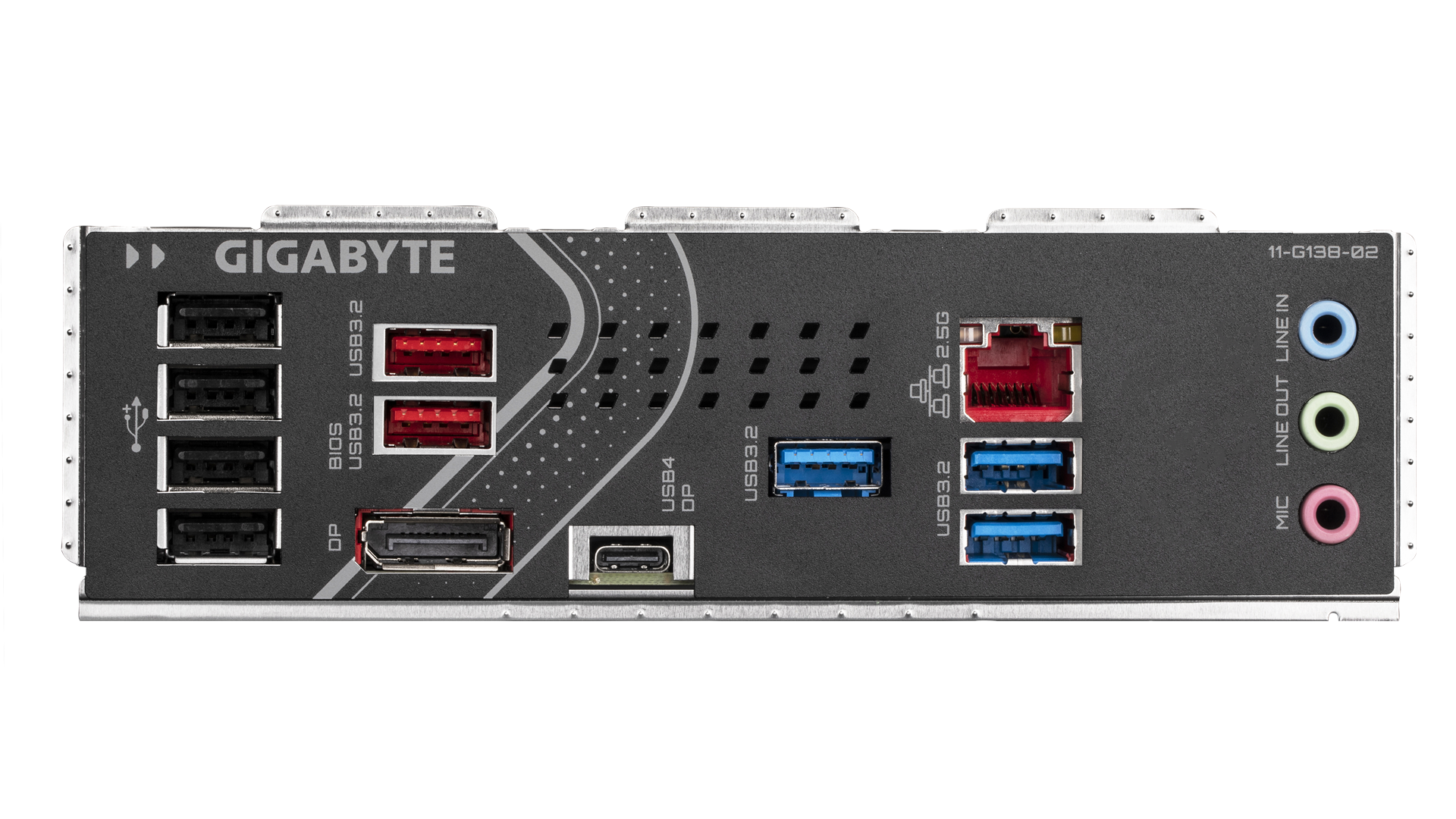

1 x Thunderbolt 4/DisplayPort/USB4 2 x USB 3.2 Gen 2 3 x USB 3.2 Gen 1 4 x USB 2.0 1 x DisplayPort 2 x antenne 1 x LAN (2.5Gigabit Ethernet) 1 x mikrofon - mini-jack 1 x audio linje-ud - mini-jack 1 x audio linje-ind

Ikke-ECC, ECC

4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 4133 MHz (O.C.), 4100 Mhz (O.C), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3200 MHz, 3100 MHz, 3000 MHz, 2900 MHz, 2800 MHz

Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)

DDR5

Ikke bufferet

274877906944

UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 understøttet, SMBIOS 2.7 support, ACPI 5.0 support

AMI

Blæserkontrol, blæserfejlvarsel, blæserhastighedsdetektion, systemspænding, temperaturdetektion

Q-Flash, Q-Flash Plus, 14+1+2 Phase Power Design, AI Perfdrive, M.2 EZ Latch plus, M.2 EZ Latch klik, PCIe EZ Latch Plus, VRM Thermal Armor Advanced, 2x Copper PCB, M.2 Thermal Guard, DIY Friendly Design, EZ Debug LED, M.2 Thermal Guard Ext., RGB FUSION, reset button, power button, Q-Flash Plus button, AI SNATCH Engine, VRM kølelegemedesign, GIGABYTE Smart Fan 6, Ultra Durable

2.5 Gigabit Ethernet

HD Audio (8-kanaler)

High Definition Audio
