(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)

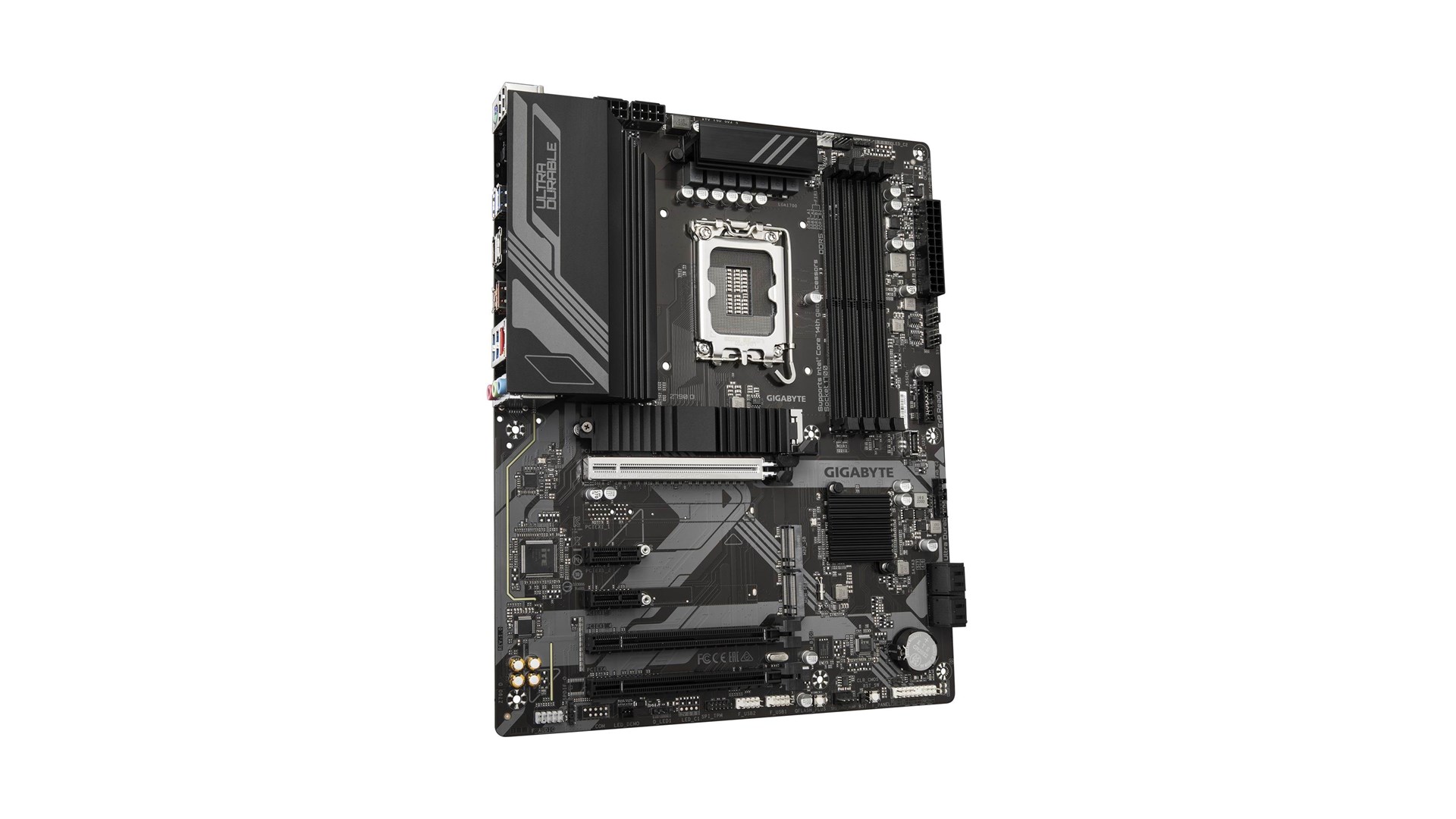

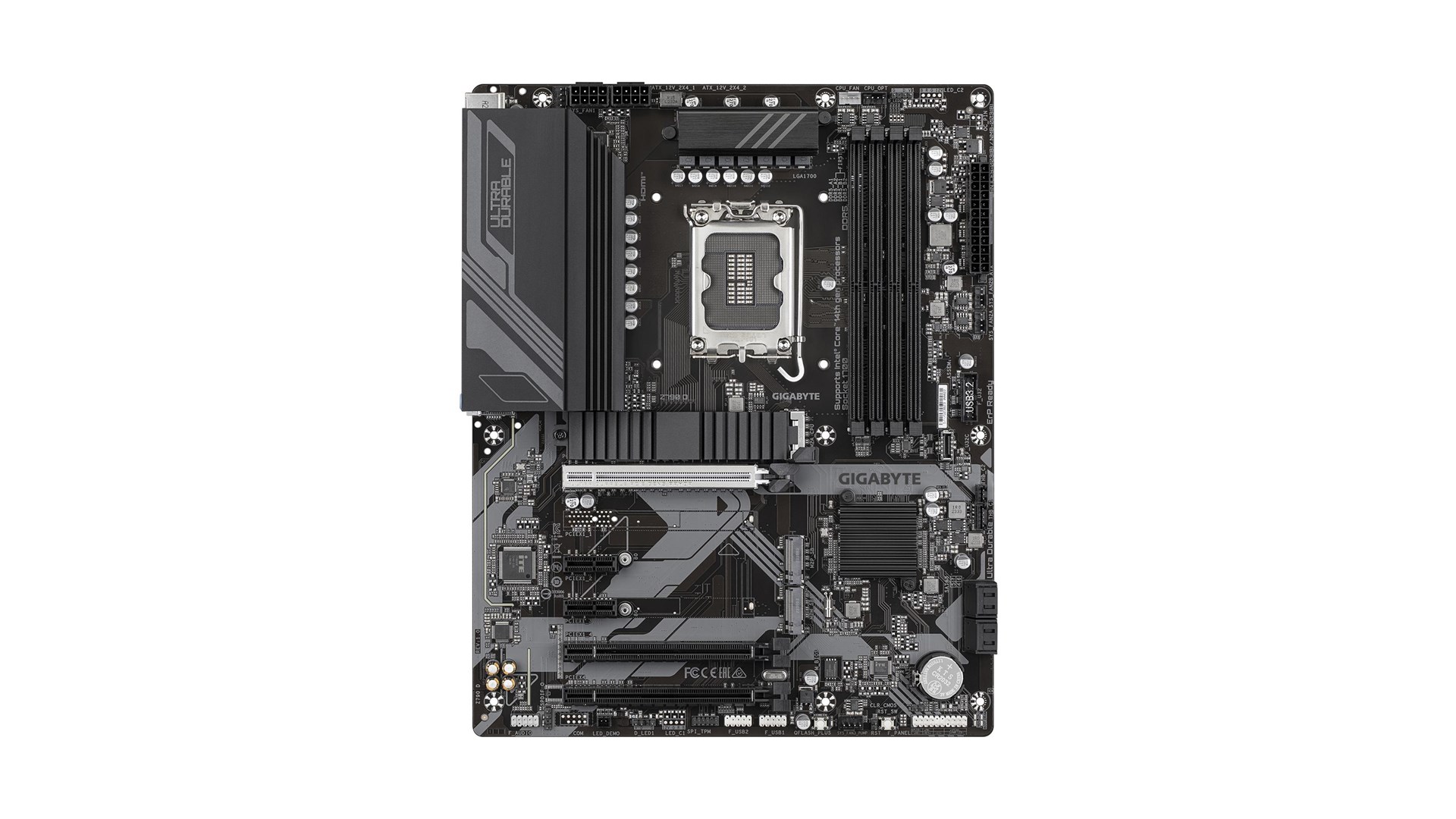

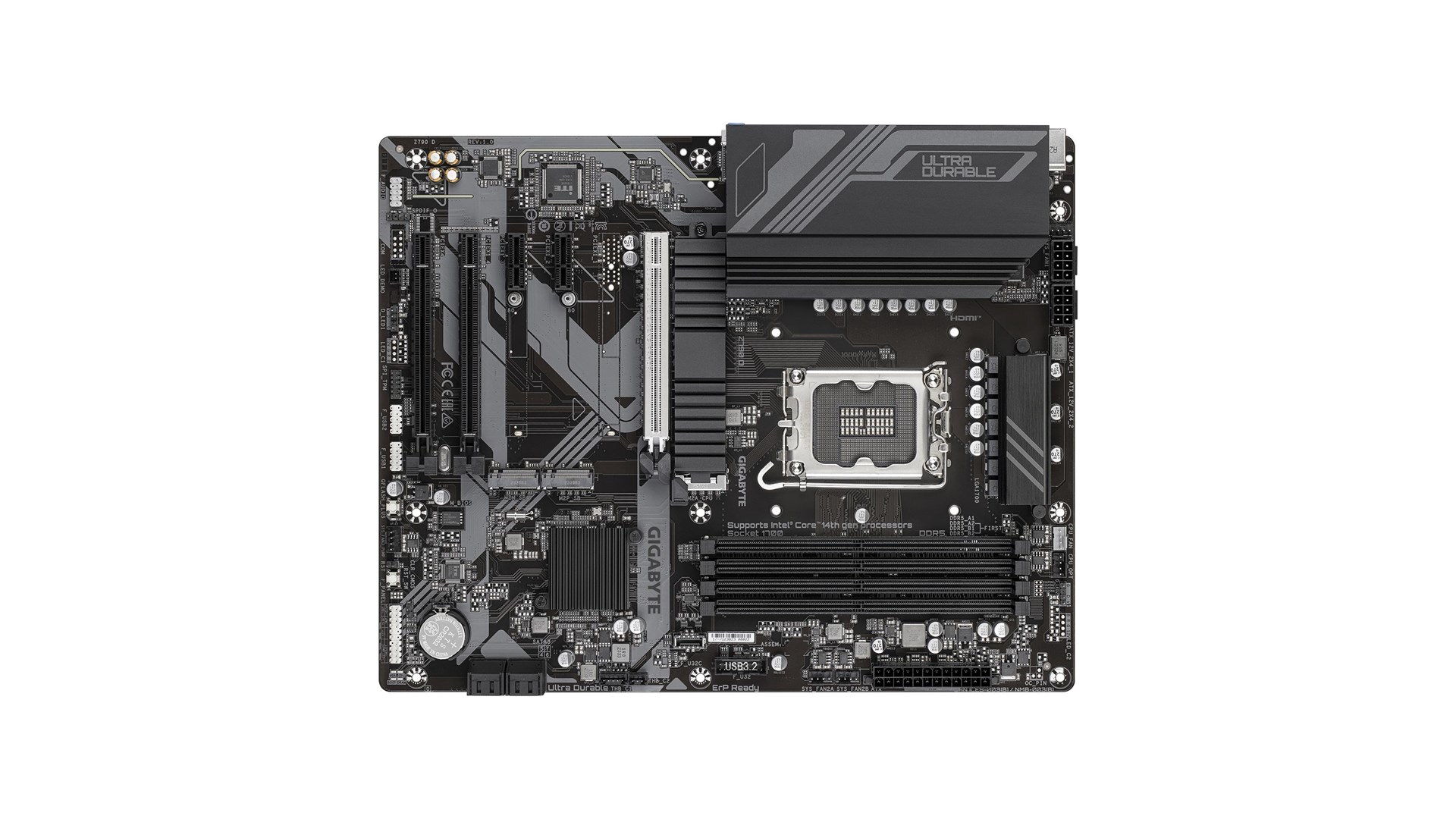

Bundkort - ATX

Intel Z790

LGA1700

1

GIGABYTE

4 x USB 2.0 - intern stik 2 x USB 3.2 Gen 1 - intern stik 1 x USB-C 3.2 Gen 1 - intern stik 1 x audio - intern stik 2 x Thunderbolt - intern stik 1 x SPI - intern stik 1 x SPDIF ud - intern stik

SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2

1 x CPU 4 x DIMM 288-pins 1 x PCIe 5.0 x16 1 x PCIe 3.0 x16 (x1 modus) 1 x PCIe 4.0 x16 (x4-modus) 2 x PCIe 3.0 x1 (x1 modus) 2 x M.2 socket (2280 M.2 Key M-åbning) 1 x M.2 socket (2280/22.110 M.2 Key M-åbning)

24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser

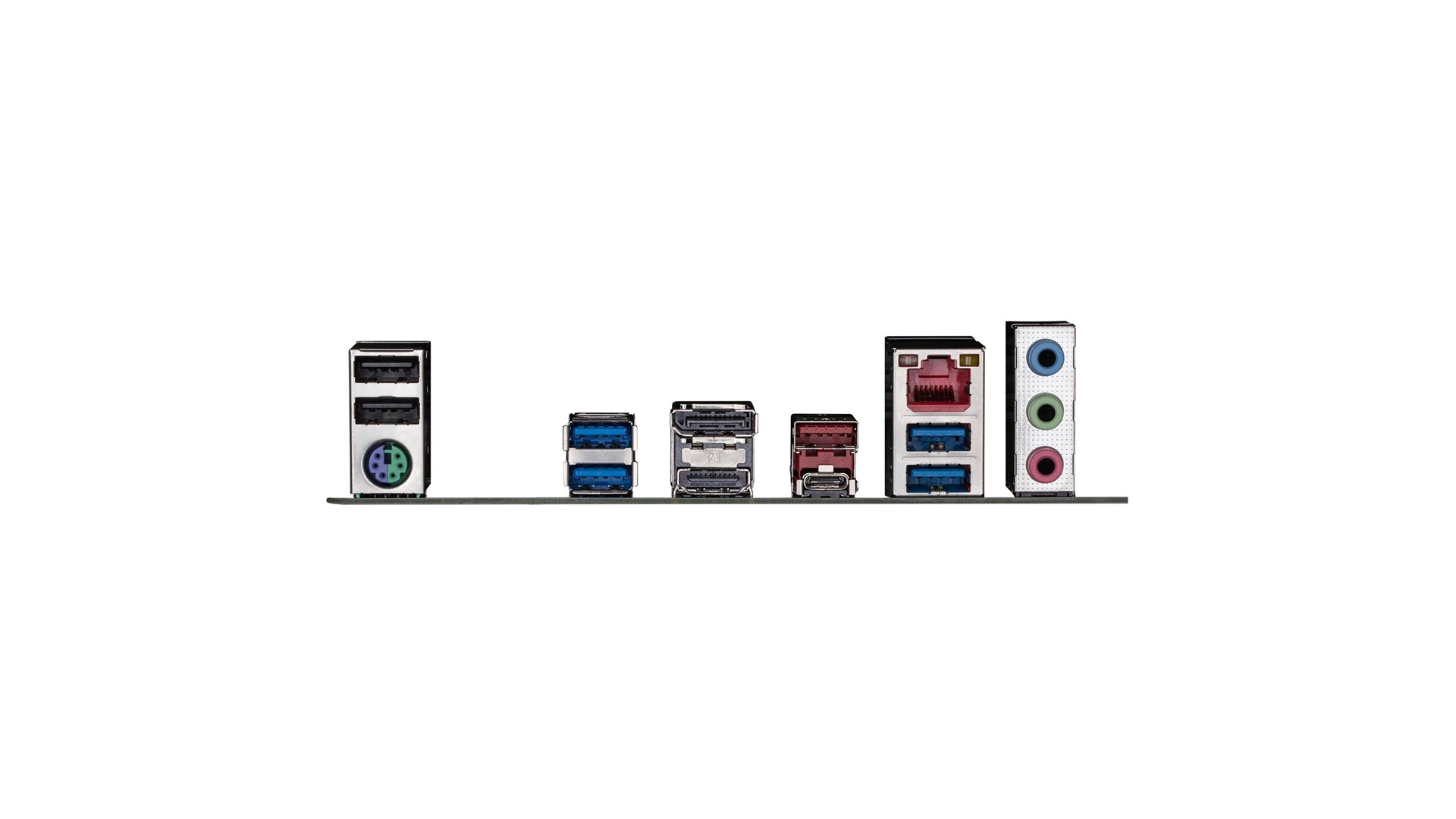

1 x LAN (2.5Gigabit Ethernet) 1 x DisplayPort 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 1 x audio linje-ind - mini-jack 4 x USB 3.2 Gen 1 1 x USB-C 3.2 Gen 2 - mini-jack 1 x USB 3.2 Gen 2 2 x USB 2.0 1 x PS/2-tastatur/mus 1 x HDMI

Ikke-ECC, ECC (drift i ikke-ECC tilstand)

2200 MHz, 2400 MHz, 2600 MHz, 2700 MHz, 2800 MHz, 2900 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3500 MHz (O.C.), 3600 MHz (O.C.), 3700 MHz (O.C.), 3800 MHz (O.C.)

Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), understøttede ECC-moduler fungerer i ikke-ECC-tilstand

DDR5

Ikke bufferet

274877906944

UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 understøttet, SMBIOS 2.7 support, ACPI 5.0 support

AMI

Systemspænding, temperaturdetektion, blæserhastighedsdetektion, vandkølings-flowrate, blæserfejlvarsel, blæserkontrol

Q-Flash Plus, Q-Flash, 12+1+1 Phase Power Design, 2x Copper PCB, 6 Layer PCB, PCIe EZ Latch, RGB FUSION 2.0, M.2 Thermal Guard, MOSFET Heatsink, Ultra Durable, Audio Noise Guard, High-end Audio Capacitors, GIGABYTE Smart Fan 6, DIY Friendly Design

2.5 Gigabit Ethernet

HD Audio (8-kanaler)

High Definition Audio
