Ryzen (understøtter Ryzen 2000 Series/ 3000 Series/ 4000 G-Series/ 5000 Series)

Bundkort - ATX

AMD X570

Socket AM4

1

ASRock

1 x USB-C Gen2 - intern stik 1 x Thunderbolt - intern stik 1 x audio - intern stik 4 x USB 2.0 - intern stik 4 x USB 3.2 Gen 1 - intern stik

SATA-600 -stikforbindelser: 8 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -stikforbindelser: 1 x M.2 - 1 enheder SATA-600 / PCIe 4.0 -stikforbindelser: 2 x M.2 - 2 enheder

1 x CPU 4 x DIMM 288-pins 2 x PCIe 4.0 x16 (PCIe 4.0 x16, x8/x8 tilstande (med Ryzen serie CPUs Vermeer, Matisse); PCIe 3.0 x16, x8/x8 tilstande (med Ryzen serie CPUs Pinnacle Ridge, APUs Renoir); PCIe 3.0 x8 tilstand (med Ryzen serie APUs Picasso)) 1 x PCIe 4.0 x16 (x4-modus) 1 x PCIe 4.0 x1 1 x M.2 socket (Key E)

24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser

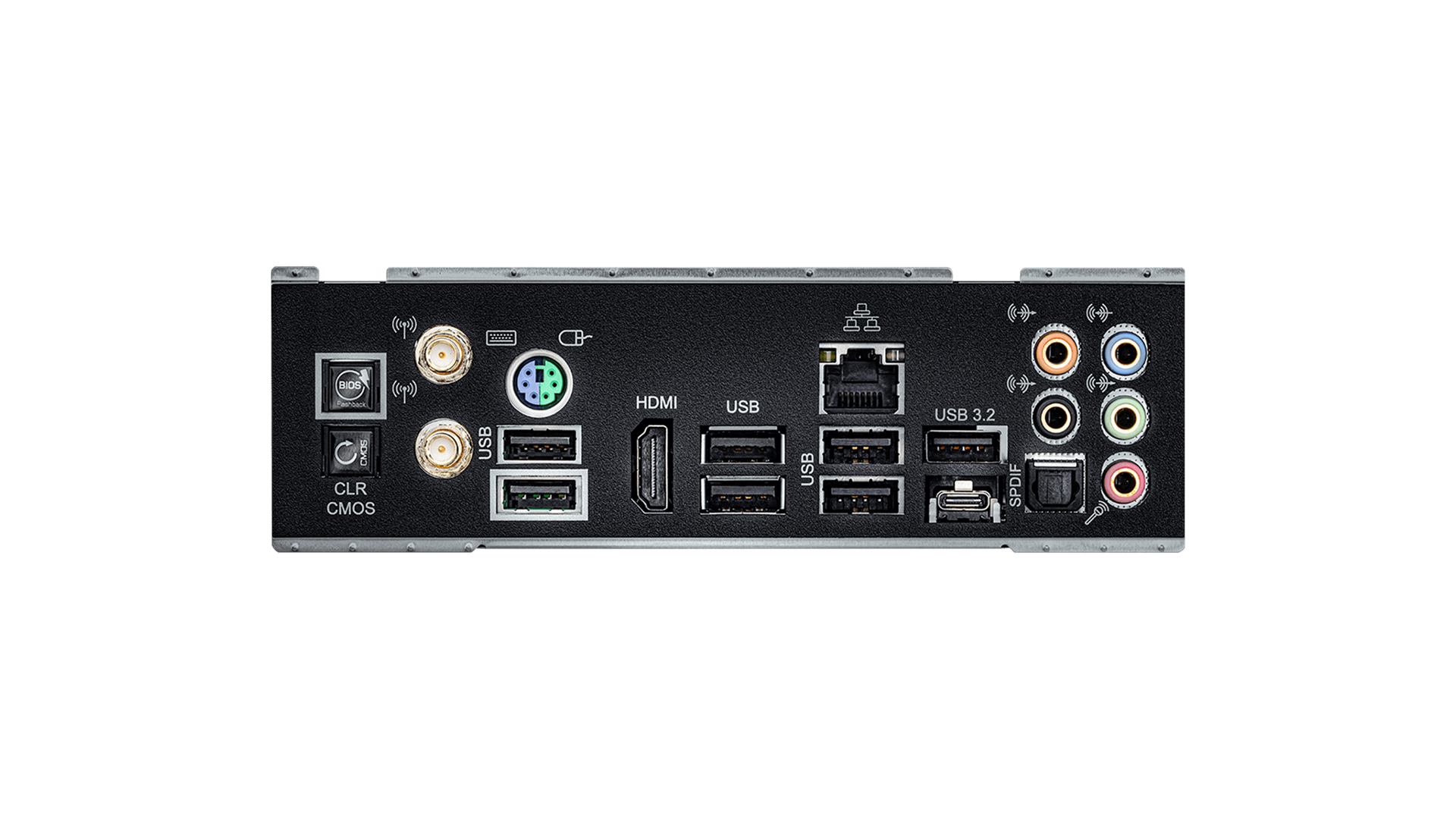

1 x USB 3.2 Gen 2 1 x USB-C Gen2 4 x USB 3.2 Gen 1 1 x HDMI 1 x TOSLINK 2 x USB 2.0 1 x audio linje-ud - mini-jack 1 x audio linje-ind - mini-jack 1 x mikrofon - mini-jack 1 x PS/2-tastatur/mus 1 x audio linje-ud (centrum/subwoofer) - mini-jack 1 x audio linje-ud (bagtil) - mini-jack 1 x LAN (2.5Gigabit Ethernet)

Ikke-ECC, ECC

2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.)

Dobbelt kanal hukommelses arkitektur

DDR4

Ikke bufferet

137438953472

JumperFree, SMBIOS 2.3 understøttet, UEFI BIOS, ACPI 5,1 support

Aktivering af LAN (wake on LAN = WOL)

AMI

CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, CPU kerne-spænding, takometer til blæser i strømforsyning

Understøttelse af NVIDIA SLI-teknologi, ASRock Instant Flash, Digital PWM, NVIDIA Quad SLI Technology Support, 15µ Gold Contact, 16 Phase Power Design, ASRock Dr. Debug, AMD CrossFireX-teknologisupport, AMD Quad CrossFireX-teknologisupport, AMD 3-vejs CrossFireX teknologisupport, ESD Protection, Gold Plated Audio Hardware, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Clear CMOS Button, Direct Drive Technology, WIMA film-kondensatorer, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, Dr.MOS MOSFET, XXL Aluminum Alloy Heatsink, Killer DoubleShot Pro, Nahimic Audio Enhacer, I/O Armor, ASRock Live Update, Premium Memory Alloy Choke, Nichicon 12K Black Caps, Matte Black PCB, Premium 60A Power Choke, Pure Power-In, PCB Isolate Shielding, ASRock Ultra USB Power, 2oz Copper PCB, NVIDIA NVLink, ESS 9218 SABRE HiFi DAC, ASRock Full Coverage M.2 Heatsink, ASRock Steel Slot Gen4, ASRock Hyper M.2

Killer E3100G / AX1650x

Bluetooth, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ax

HD Audio (8-kanaler)

Realtek ALC1200

High Definition Audio, Premium Blu-ray audiosupport

16 GB
