| MAC adresse table størrelse | 16K indtastningshukommelse |
| Autentificeringsmetode | RADIUS, X.509 certifikater, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Overensstemmelsesstandarder | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX |
| Pakningstype | Monterbar på stativ 1U |
| Routingprotokol | RIP, RIP-2, IGMPv2, IGMP, IGMPv3, statisk IPv4 routing, statisk IPv6 routing, MLDv2, MLD, CIDR |
| Krypterings algoritme | DES, trippel DES, RSA, MD5, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, DSA, ECDSA, AES-ECB, PKI, 128-bit AES, 192-bit AES, 256-bit AES, AES-CBC, SHA-2, 256-bit SHA-2, 384-bit SHA-2, 512-bit SHA-2, TLS 1.2, AES-CFB, AES-OFB, RNG, 224-bit SHA-2, CCM, CMAC, GCM, XTS, DRBG |
| Max antal enheder i en stak | 4 |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SMTP |
| Undertype | Gigabit Ethernet |
| PoE-budget | 370 W |
| Flashhukommelse | 256 MB |
| Jumborammesupport | 10KB |
| Kapacitet | Bufferkapacitet (MB): 1.5
Konfigurerbare VLAN'er: 4094
Prioritetskøer: 8 |
| Egenskaber | Datatransport, understøttet af ARP, understøttet af OCSP, VLAN-understøttet, IGMP snooping, portspejling, DiffServ understøttet, MAC-adresse-filtrering, SNTP-understøttet, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MDL snooping, DAI, PVST+, STP Root Guard, RSPAN, SNMP fælde, DHCP klient, MIB, MAC adresse lockout, GVRP, NAC, løkkeforebyggelse, portisolering, SP, 802.1x autentificering, VoIP support, IP-kildebekyttelse, EPSRing, Logical Link Control, ICMP, CPP, SCP, AMF, BIST, DDM, MAC-adresseautentificering, NTP, Active Fiber Monitoring, AAA, IGMP-forespørger, VLAN-spejling, Voice VLAN, LLDP-MED, Private VLAN, stormbeskyttelse, Guest VLAN, WRR, tilbageløkke-detektion, VLAN Tagging, BPDU Guard |
| Præstation | Skift af stofbåndbredde: 240 Gbps
Videresendelseshastighed: 179 Mpps
Latens (10 Gbps): 1.67 µs
Latens (5 Gbps): 5.06 µs
Latens (2, 5 Gbps): 7.51 µs
Latens (1 Gbps): 7.75 µs
Latens (100 Mbps): 8.34 µs |

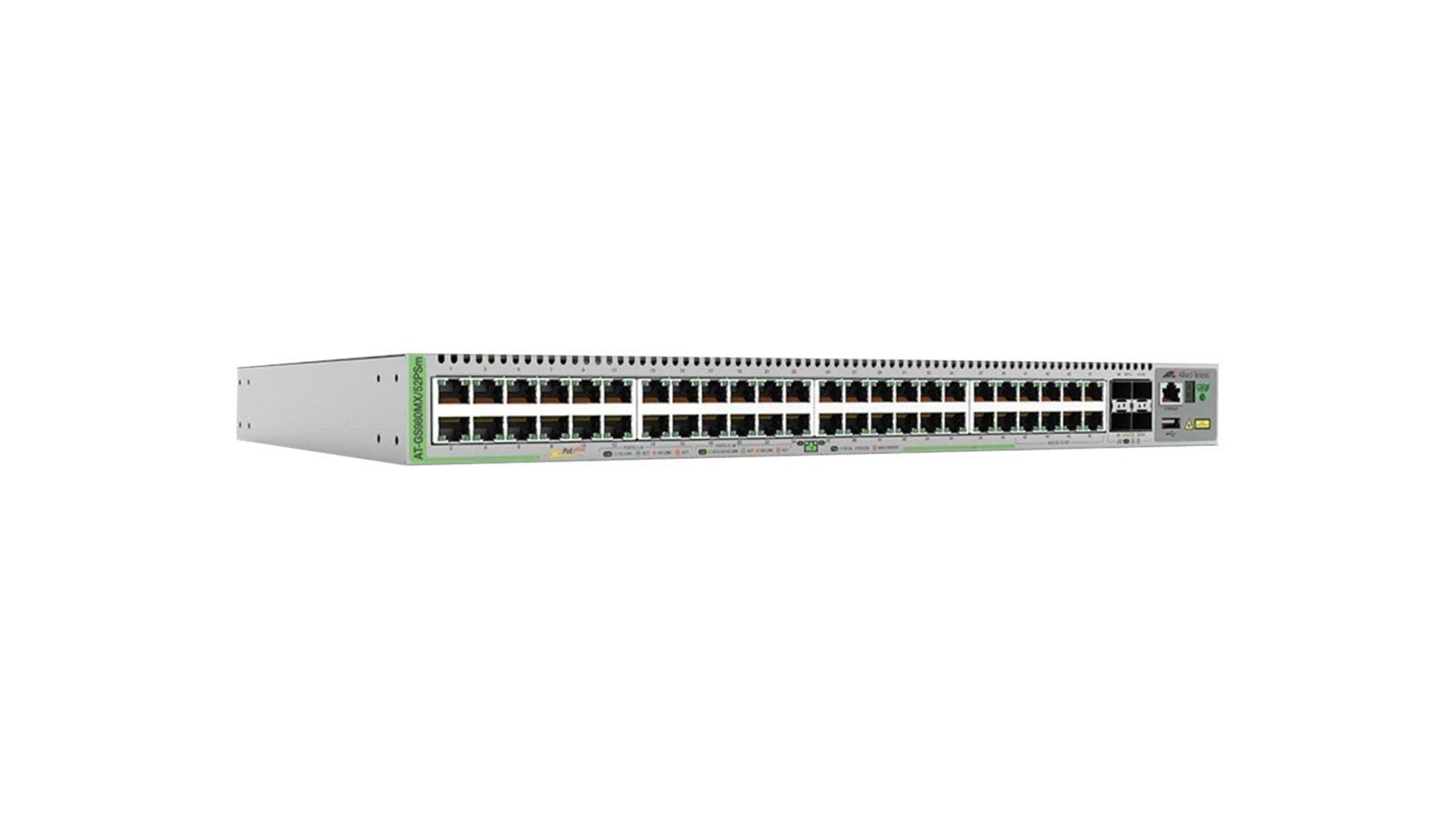

| Enhedstype | Switch - 52 porte - L3 - Administreret - kan stables |
| Power Over Ethernet (PoE) | PoE+ |
| Porte | 40 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| RAM | 1 GB DDR3 SDRAM |
| Producent | Allied Telesis |
